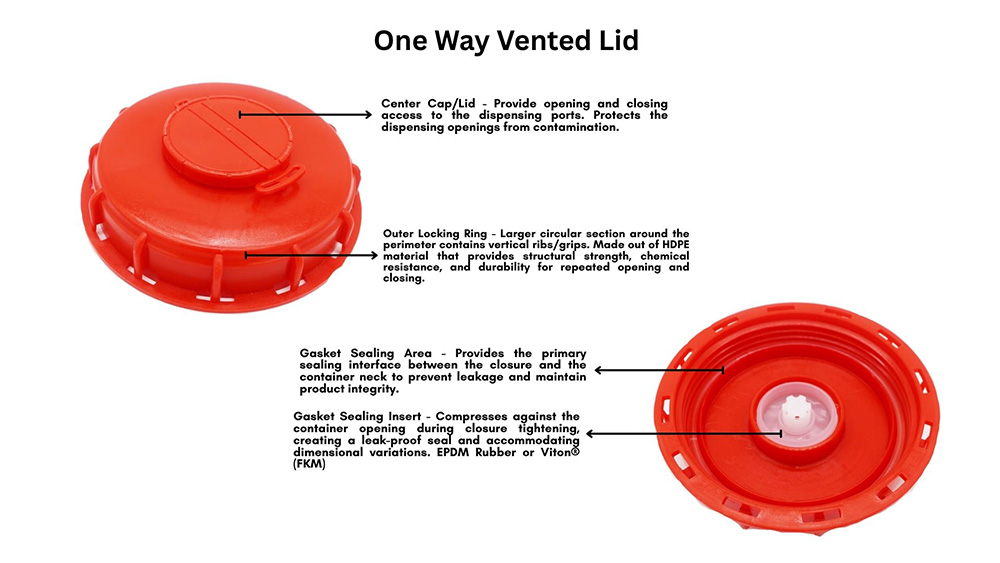

One-Way Vented Lid
The One-Way Vented Lid is designed to release exess pressure that can build up inside an IBC tank. it allows air to flow out when needed while preventing outside air, dust and moister from entering the container. This helps keep the contents protected during storage and transport.

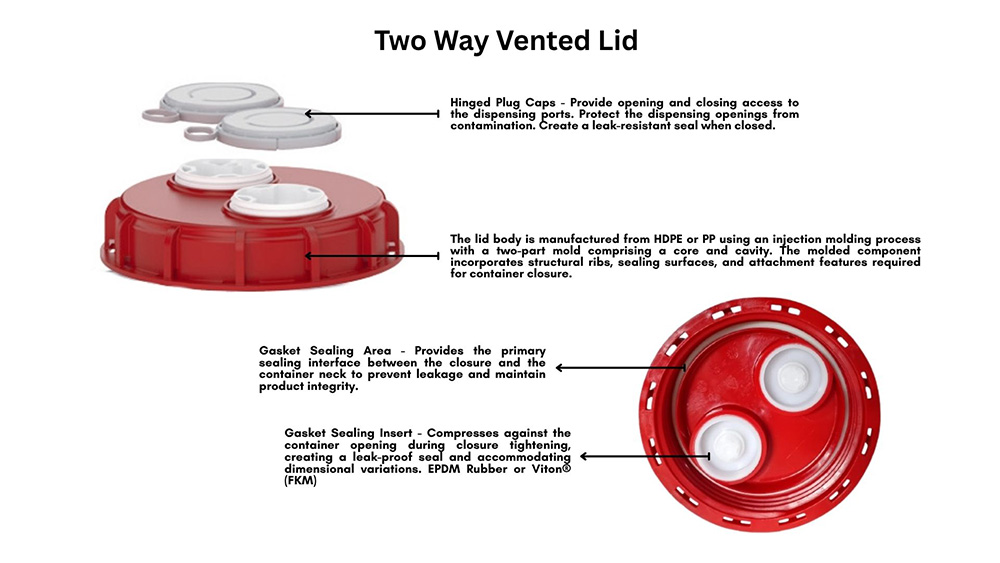

Two-Way Vented Lid
The Two-Way Vented Lid is helps control pressure inside an BC tank by allowing air to move both in and out of the container. It releases excess pressure and allows air to enter when a vacuum is created during filling , dispensing or temperature changes. This helps maintain tha bank's shape and ensure smooth operation.
Best IBC choice for Optimization in container capacity
As is common knowledge, standard 1000 litre IBCs when stuffed in a standard shipping container (20 ft. FCL) fit only 18 IBCs. 10 IBCs (1000 liters) are placed on the floor of container (hence forming the bottom layer) and another 8 are stuffed / stacked on the top. Only 8 IBCs can be fitted on the top layer as the height of the shipping container door does not permit accommodation of last 2 Nos 1000 litre IBCs.Time Technoplast Ltd introduces new revolutionary model of IBC “SNG Altimate” which is 1000 ltr Bulktainer with standard international design & dimensional configuration these newly developed SNG Maxima can stuff 20 IBCs in standard 20’ shipping container. This directly increase the product quantity in container by 2 KL (12% increase) resulting in reduction on FOB, sea fright & transportation expenses. Thus making the product more competitive in current stiff stringent scenario.
With the popularity of Intermediate Bulk Container (IBC) spreading far & wide, IBC systems are being increasingly used in newer markets such as Middle East, Asia, far East and Africa apart from established markets of Europe & America.® Green Mark Plastic Industry LLC introduces Bulk Container SNG Systems designed with exclusive features of efficient performance even in rugged terrains and rough handling, to carry most hazardous and precious chemicals across long stretches of land and water.
Technical Specifications
| Description | Bulk Container – CP | |||
|---|---|---|---|---|
| Dimension (L x W x H) (mm) | 1200 x 1000 x 1175 | |||
| Inner Container (UV stabilized HM-HDPE) |
Standard | Transparent | ||
| Optional | Black / Blue | |||
| Useful Volume (Ltr.) | Standard | 1000 Ltr. | ||
| Pallet Type | Standard | Plastic (PE) | ||
| Filling Opening | Standard | DN 150 | ||
| Optional | DN 225 | |||
| Gasket for Filling Opening | Standard | EPDM | ||
| Optional | Viton | |||
| Bottom Discharge Valve* | Standard | DN 50 Butterfly | ||
| Optional | DN 50 Ball DN 80 Butterfly |
|||
| Identification Plate | Standard | 504 x 396 mm | ||
| Optional | 673 x 396 mm 700 x 396 mm |
|||
| Additional Features | Identification plates & Security flap at Discharge Port are press – fitted. Option of Camlock adaptors & NPT coupling for Discharging Valve. |
|||
| Certifications / Approvals | Hazardous goods certification available | |||
